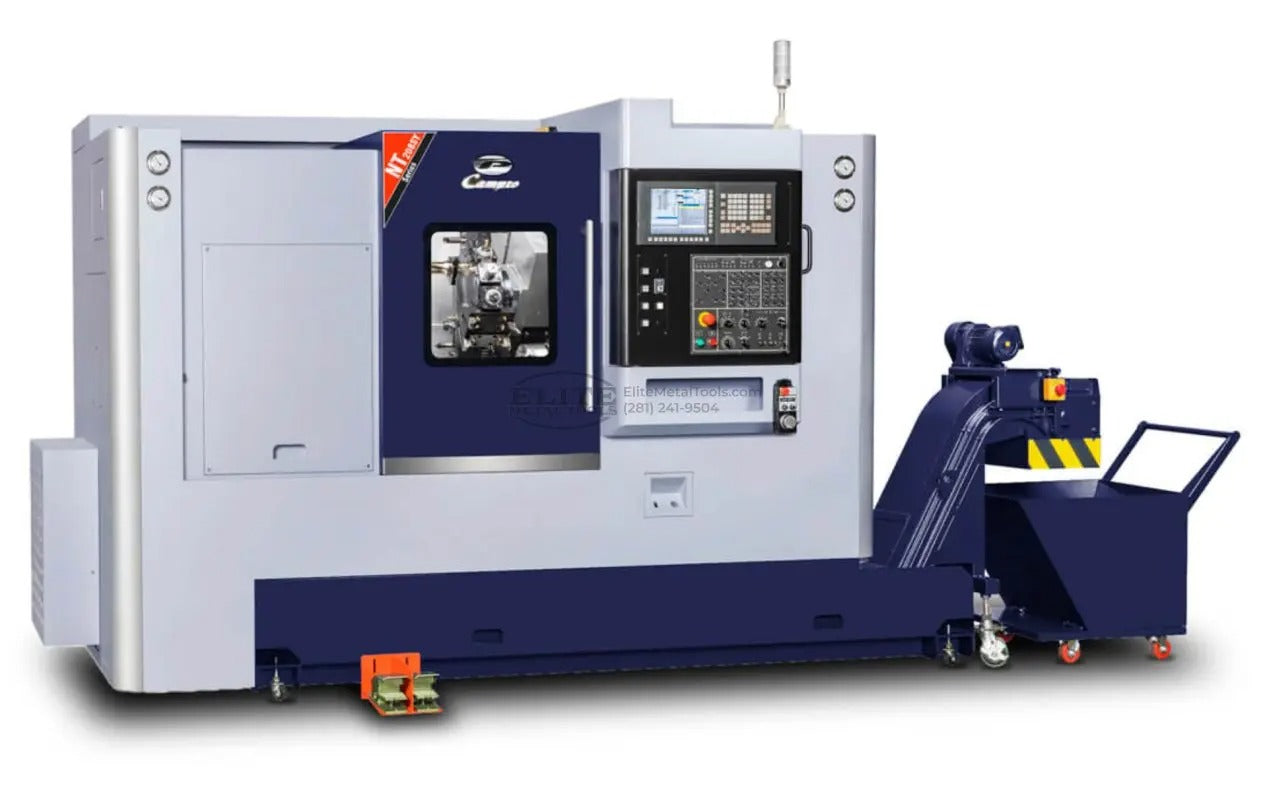

Three Phase Y Axis CNC Lathe Turning Center with 8” Chuck and 6” Sub-Spindle NT-208SY
Three Phase Y Axis CNC Lathe Turning Center with 8” Chuck and 6” Sub-Spindle NT-208SY
Обычная цена
$0.00
Обычная цена
$0.00
Цена со скидкой
Цена за единицу
/
за
Артикул:
Three Phase Y Axis CNC Lathe Turning Center with 8” Chuck and 6” Sub-Spindle NT-208SY
Обычная цена
$0.00
Обычная цена
$0.00
Цена со скидкой
Цена за единицу
/
за
Описание
Описание
- Swing over bed: 26.7”
- Swing over cross slides: 18.1”
- Maximum turning diameter: 15.7”
- Maximum turning length: 20.4”
Description
The NT-208SY is Campro's versatile and profitable CNC Turning Center. It features high-performance heavy-duty box guideways and a 30-degree cast iron inclined bed for efficient chip evacuation. The NT-208SY is built on a high-quality cast-iron bed, ensuring superior rigidity and vibration resistance. The CPMS (Campro Production Management System) marks the first step towards smart manufacturing.
Features
- 3-jaw, 8” hydraulic chuck
- Chain-type chip conveyor with bucket
- Coolant system
- Oil skimmer
- Tool box
- Instruction manual, parts list, and electrical diagram
- Fanuc operator and maintenance manuals
- Warranty: Machine - One Year, Parts; Control - Two Years, Parts & Labor
Specifications
Working Area
- Swing over bed: 26.7”
- Swing over cross slides: 18.1”
- Maximum turning diameter: 15.7”
- Maximum turning length: 20.4”
Travel
- X Axis Travel: 8.6”
- Y Axis Travel: 3.9”
- Z Axis Travel: 24.8”
- Rapid Traverse: 787 / 393 / 945 IPM
Spindle
- Spindle Motor: 20 HP
- Maximum Speed: 4,200 RPM
- Hydraulic Chuck: 8”
- Spindle Nose: A2-6
- Hole Through Draw Tube: 2.05”
Turret
- Tooling Style: BMT-55
- Turret Type: 12 – Servo driven
- Tool Size OD / ID: 1” / 1.5”
- Maximum Live Tools Speed: 5,000 RPM
- Includes one axial and one radial BMT live holder
Sub Spindle
- Chuck Size: 6”
- Travel: 19.6”
- Maximum Speed: 5,000 RPM
- Spindle Nose: A2-5
- Hole Through Draw Tube: 1.7”
- Spindle Motor: 10 HP
General
- Floor Space Required (W x D): 167” x 84”
- Height: 93.7” with Work Light
- Machine Weight: 10,360 lbs.
- Standard Power Source: 205-235 Volts / 3 Phase / 60HZ
- Power Capacity Minimum: 30 KVA
Options
- Special Purpose Chip Conveyor
- Oil Mist Collector
- Parts Catcher
- Automatic Bar Feeder Interface
- Automatic Door
- Automatic Power Off
- 66 mm Hole Through Draw Tube for A2-6 Spindle Nose
- Coolant Gun
- Air Gun
- CE Modification
- Transformer
